ELPW-SS2

产品特点

● 适用于小批量产品的手工激光塑料焊接生产

● 非常适合小批量产品的激光塑料焊接

● 通过应用ATC（Auto Tool Change）功能可以稳定生产多种产品

● 适用焊接质量检查功能，可以判断所生产产品的良/不良

设备简介

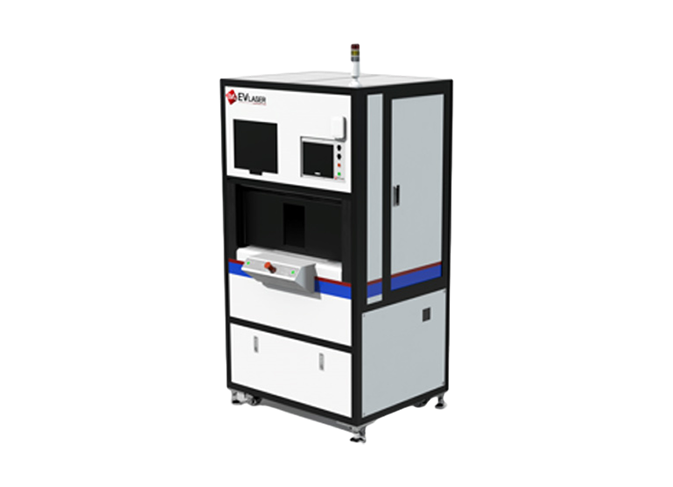

ELPW-SS2 Series
Laser Type	ELCR D Series (100/200/300/500 watt)
Welding Area	100x 100/ 160x 160/ 200x 200mm
Welding Product Size	250 x 250x 150 mm
Welding Quality Function	Welding Depth Control
Beam Delivery Type	Laser Scanning
System Drive Type	Manual
JIG Type	ATC(Auto Tool Change)/ Normal Jig Change(Clamping)/ None
System Control	PLC Control
Cooling Type	Forced Air Cooling
Dimension	Approx. 1,500x1,500x2,200 mm
Power	220VAC, 50/60Hz, Single Phase
Option	ATC, MES, 3D Scanner, ETM, Power meter
